Details

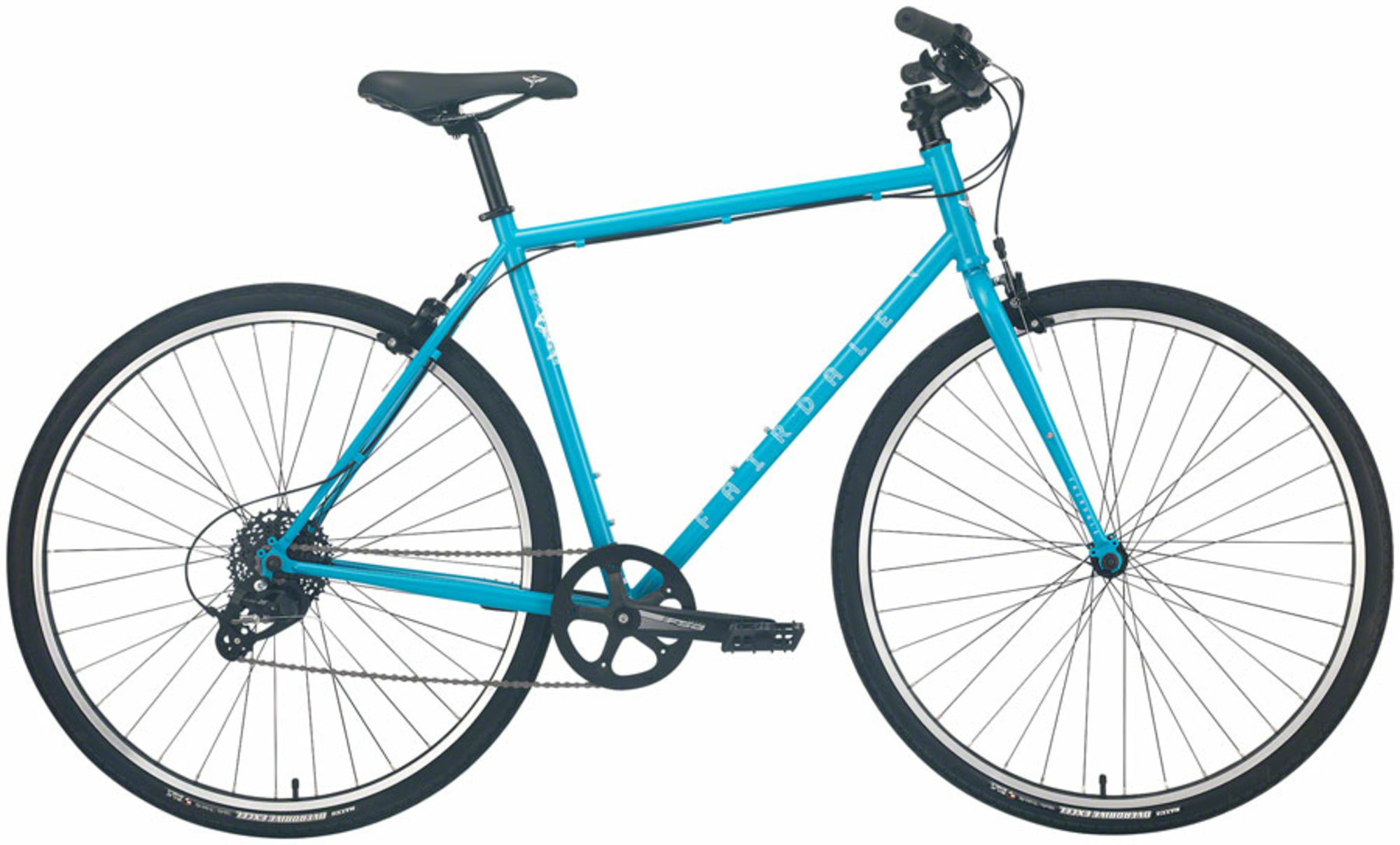

The Lookfar makes cruising and commuting easy. One simple trigger shifter changes the gears up-or-down through all 8-speeds. The bike’s 40mm wide Maxxis tires feel fast on smooth ground while still confidently handling rough terrain. The Lookfar comes equipped with rack and fender mounts for lots of useful set-up options. We even chose to use normal Schrader valve tubes so you won’t need to use a special bike pump.
The Lookfar shares the same proven geometry as our ever-popular Weekender model.
- Steel frame with 130mm rear spacing for 700c wheels
- Rack, fender, and two sets of water bottle mounts
- Rim brakes
- English 68mm bottom bracket
- 27.2mm seatpost
- Approximate max tire width: 42mm
Size | X-Small (49cm) | Small (52cm) | Medium (55cm) | Large (58cm) |
---|---|---|---|---|
Top Tube (Effective) | 508mm | 525mm | 552mm | 578mm |
Top Tube (Actual) | 495mm | 507mm | 531mm | 559mm |
Seat Tube (BB Center To TT Top) | 385mm | 436mm | 490mm | 538mm |
Seat Tube(BB Center To TT Center) | 317mm | 370mm | 448mm | 496mm |
Seat Tube Angle | 74.5 ° | 74° | 73° | 73° |
Head Tube Length | 100mm | 120mm | 140mm | 160mm |
Head Tube Angle | 69.6 ° | 70° | 71° | 72.5° |
Chain Stay Length | 440mm | 440mm | 440mm | 440mm |
Wheelbase | 1021mm | 1030mm | 1038mm | 1050mm |
Standover | 698mm | 733mm | 780mm | 815mm |
Stack | 521mm | 541mm | 564mm | 589mm |
Reach | 363mm | 370mm | 379mm | 398mm |
Fork Length | 401mm | 401mm | 401mm | 401mm |
Fork Offset | 50mm | 50mm | 50mm | 50mm |
BB Drop | 68mm | 68mm | 68mm | 68mm |
Dropout Spacing | 135mm | 135mm | 135mm | 135mm |
BB Type | English 68 | English 68 | English 68 | English 68 |
Seat Post | 27.2mm | 27.2mm | 27.2mm | 27.2mm |
Seat Clamp | 30mm | 30mm | 30mm | 30mm |
Approx. Max Tire Width | 42mm | 42mm | 42mm | 42mm |
Wheel Size | 700c | 700c | 700c | 700c |
Size | Rider Height |
---|---|
X-Small | 4'11" - 5'4" |
Small | 5'2" - 5'7" |
Medium | 5'7" - 5'10" |
Large | 5'9" - 6'1" |
Specs
Frame | 1020 Steel, with Rack and Fender mounts |
---|---|
Fork | 1020 Steel, 1 1/8” |
Rims | 700c, 36-Hole, Schrader Valve, Aluminum |
Hubs |
Front: 36H, 3/8” Axle, Aluminum Shell, Looseball Rear: 36H, 3/8” Axle, 8-Speed Cassette, Looseball |
Tires | Maxxis Overdrive Excel 700c x 40mm |
Bottom Bracket | FSA |
Crankset | FSA Tempo 1X (S=165mm, M=170mm, L/XL=175mm) |
Chainrings | 42t |
Shifters | MicroShift TS39-8R Trigger, 8-Speed |
Cassette/Freewheel | MicroShift, 11-34T, 8-Speed |
Chain | KMC Z8.1, 8-Speed |
Brakes | Aluminum, Dual Pivot, 55-75mm reach w/Quick Rels. |
Brake Levers | Aluminum, Short Pull |
Handlebars | Fairdale Archer v3, Aluminum |
Tape/Grips | Fairdale Swan |
Stem | 70mm, Forged Aluminum |
Headset | FSA, Sealed Integrated, 45º/45º |
Seatpost | Micro adjust, 27.2mm |
Saddle | Fairdale |
Pedals | Odyssey Twisted PC |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN |
---|---|---|
Surf Blue / X-Small / 700c | 630950929191 | FDX-327-SFBU |
Surf Blue / Small / 700c | 630950929207 | FDX-328-SFBU |
Black / Small / 700c | 630950929177 | FDX-325-BK |
Black / Medium / 700c | 630950929160 | FDX-324-BK |
Surf Blue / Medium / 700c | 630950929214 | FDX-329-SFBU |
Surf Blue / Large / 700c | 630950929221 | FDX-330-SFBU |
Black / Large / 700c | 630950929184 | FDX-326-BK |
